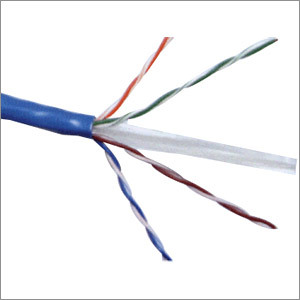

Cable UTP 4 pares Categoria 6 color azul

PDFPrintEmail
Manufacturer: Techmaster
Description

This product is available in the followings colors:



Industry Standards:



  • ANSI/TIA/EIA 568-B. 2-1
  • EN50173
  • EN50288-5-1
  • ISO/IEC11801
  • UL, 3P, ETL



Application:



  • ISDN
  • 10BASE-T (IEEE802.3)
  • 100BASE-T (IEEE802.3)
  • 155MbpsATM
  • 100Vg-AnyLAN(IEEE802.12)
  • TP-PMD(ANSI X3T9.5)
  • 16Mbps Token Ring (IEEE802.5)
  • 1000BASE-T (IEEE802.3ab)



Instruction:



  • 23AWG (Solid)
  • (Foam/Skin PE) insulation
  • PIMF formation, aluminum foil screen around each pair with insulation on inside surface, use tin plated over copper net to weave.
  • Cable Jacket: PVC, FRPVC, LSOH
  • 4-pair
