Conector RJ45 Cat.6 hembra


This product is available in the following colors:


Main description of the product:

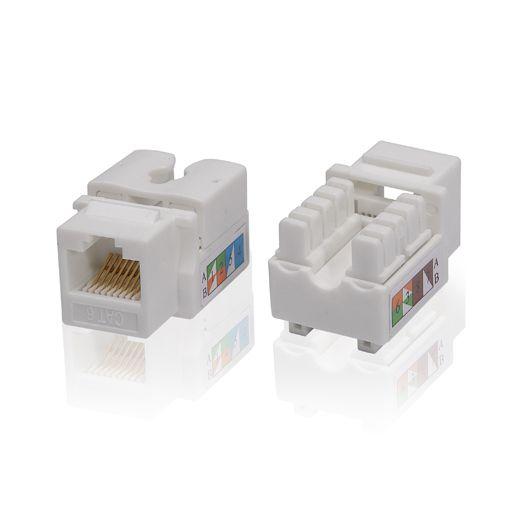

· Keystone Jack, Cat.6 Class E, UTP type, for connecting application of communication ports in working area.

· A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack. That can provide a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.

· According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.

· Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 calbes.

· 5.  Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and Cat.5e systems.


Technique Characteristics:


· Material of plastic parts: PC UL94V-0

· Material of the FCC connectors’ 8 pin: Phosphor bronze with golden plated 3U
