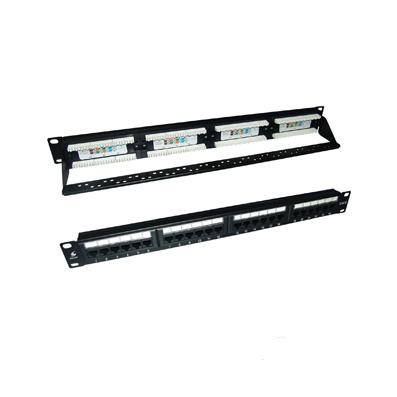

Patch Panel de 24 puertos Cat.5e

PDFPrintEmail
Manufacturer: Techmaster
Description

 Main Description:



  • 12/24/48 ports patch panel, Cat.5e UTP type. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
  • The cable manager is combined in this patch panel.
  • All kinds of cables with different dimensions can be fixed on the patch panel.
  • According to the standard of ISO/IEC 11801:2000 CLASS D and ANSI/TIA/EIA/568B
  • Cat.5e standard. T568A punching sequence and T568B punching sequence are both compatible.
  • Fitting for horizontal distribution in the equipments room and equipments connecting.
  • Connecting: FCC port for Cat.5e UTP patch cord and IDC for horizontal distribution cables.
  • Compatibility: Compatible for UTP Cat.5e general cable distribution systems.
  • IDC: 110 type or dual use type for your choice.



Technique Characteristics:



  •  Entire high-carbon steel outer frame, with plastic powder cladding.RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor bronze pins.
  • Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
  • Cabling sequence: T568A & B.
  • Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for dual IDC.
  • Testing condition of transmitting capability: 100MHz
